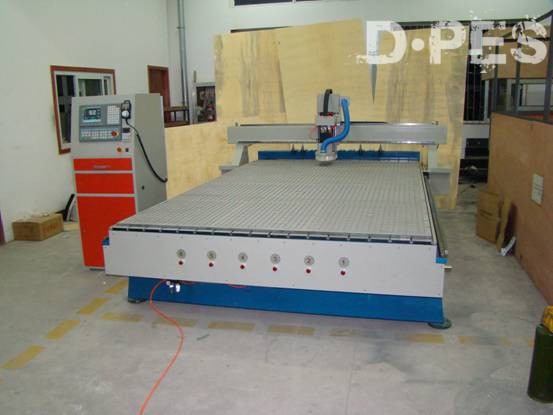

Standard Features:
1. ltaly air cooling spindle, Japan Yaskawa servo motor.
2. Industrial pipe welding lathe, box-type structure to ensure the high stability.
3. Special instrument to eliminate welding stress, high-precision machining planer ensures precision and no deformation.
4. Major machine body makes the stability and no shacking in high speed.
5. Professional mechanical design, scientific structure and generous appearance.
Applicable Fields:
Widely used in antique furniture with relief carving, furniture processing, instrurment making, 3D light box making, aluminum composite panel, funding mould decorative doors and windows processing .
Special Configuration:
Standard configuration spindle or 7.5KW, 9KW, 11KW one, different working size is customized.
Technical Parameters
Model
|
SK-2030WS
|
Table Size
|
2140*3140*150 mm
|
Working Size
|
1300*2500*130mm
|
Spindle Voltage
|
HSD air cooling 6000w
|
Motor & driver
|
Yaskawa servo motor
|
Tool Diameter
|
¢3.175mm ¢6mm ¢12.7mm
|
Tool quantity
|
12 pcs
|
Structure
|
cast square tube
|
Transmission
|
XY gear rack, Z ball screw
|
XYZ Guiding Rail
|
Imported Square rails
|
Reposition Accuracy
|
<0.03/300mm
|
Engraving Speed
|
12000mm/ min
|
Spindle Rolling Speed
|
6000~24000rpm
|
Controller
|
Original Syntec controller
|
Software
|
Ucancam V9
|
Format of Instructions
|
G code format or HPGL
|
Voltage
|
AC220V/50HZ or 380V/50HZ
|
Net Weight
|
1200kg
|
