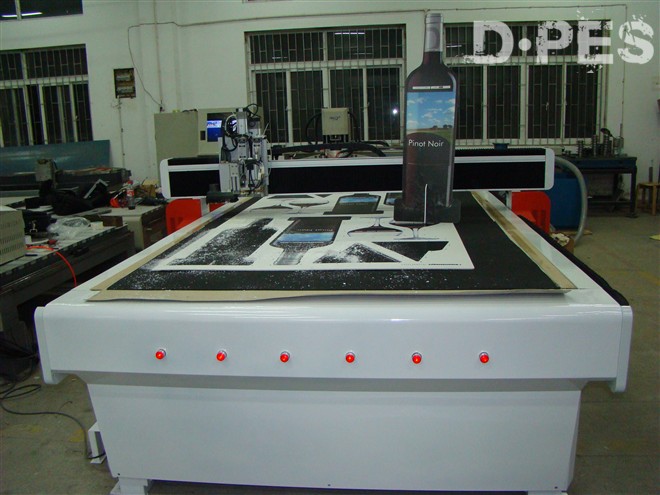

Product Name:flated bed contour cutter

Product Details:
Model:
SK-1530 (5ft*10ft)
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 10000.00-70000.00 /Set
Shipping Terms:
1
Shippment Port:
shanghai
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per in 25 days after payment
Delivery Time:
Packaging:
standard wooden case

Detailed Product Description:

Platform

1The base platform is a rugged one-piecewelded steel frame, stress relieved and precision machined.

2The working surface is 1PVC with a high-flow air grid pattern. Upon isatallation, the surface is machined in place to insure a flat surface.

3The gantry’s X and Y movement are driven by high-quality servo motors on gear rack rails. The Z axis combines a ball screw drive with a servo motor ( servo motors by Panasonic, Japan)

I-cut Camera & Software

1The i-cut camera with its fast video capture board is capable of reading the register marks accurately. It is compatible with the industry’s leading RIP and printer manufactures.

2I-cut vision’s patented means of distortion compensation enables the Signkey Flated Bed Cutter to produce error free results.

Tools(continued)

1If necessary the router motor can be replaced in minutes. The knife stations accept different tool holders like kiss-cut, crease as well as the fixed and oscillating knifes. Tool holders are interchangeable and can be changed in seconds. The Signkey tool holders accept blades and bits offered by i-cut.

2Optional standard Signkey router spindle is rated for most substrates used in the Wide Format Printing Industry. If needed, the standard spindle (include) can be replaced from a range of heavy duty spindles.

Vacuum

The work surface is divided in zones; four for the 4*8ft model and six for the 5*10ft. model. Each zone has its own vacuum pump controlled by individual “on/off” buttons on the front panel. The power of the pumps is configured for most substrates used in Wide Format Printing.

Material handled by Signkey Flated Bed Cutter

Styrene, Poster Board, Foam Core, Gator Foam ( up to linch thick), Wood, PVC, Plexi-Glass, Corroplast, Paper, Vinyl



Model

(working area)

Floor space needed

Power requirements



weight

Length

(inches)

Width

(inches)

4*8Ft.

10*10Ft.

220V Single Phase-40amps

2200lbs.

120”

86”

5*10Ft.

11*12Ft.

220V single Phase-40 amps

3000lbs.

144”

98”

Tools

Multi Tool Head features four stations:

Router Spindle 1050W, 10-35k RPM

Creasing Tool

Fixed Knife

Oscillating Knife

More tools: I-cut camera, kiss-cutting tools, etc.





Samples
